Vertical Test Stand (VTS)

Its vertical design ensures even pressure distribution and is space-efficient, making it ideal for facilities with limited space.

Overview

A Vertical Type Hydro Test Stand is a testing device used to perform hydrostatic pressure tests on cylindrical or tubular components, such as pipes, hoses, valves, or pressure vessels, in a vertical orientation. Hydrostatic testing is crucial for verifying the integrity, strength, and leak resistance of these components by pressurizing them with water and checking for leaks or deformations.

Certain manufacturing industries like oil and gas pipelines, aerospace, demand more specialised and application-focused testing solutions. A vertical test stand (VTS) is one such specialised testing equipment engineered to examine components in upright orientation, as in their natural operating position. This advanced hydrostatic testing system is purpose-built for assessing components designed to operate in vertical positions, such as Vertical Pipeline, rocket engines, helicopter turbines, and certain marine propulsion systems.

Trident Hydro Solution is one of the leading manufacturers of Vertical Valve Test Stands, known for delivering high-performance hydraulic test benches. Our testing solutions are backed by advanced technology and adherence to international standards, enabling us to meet the industry’s testing needs accurately and reliably. On these grounds, let us help you explore more about Vertical testing stands and the benefits of this equipment on the industry operation.

Product Range

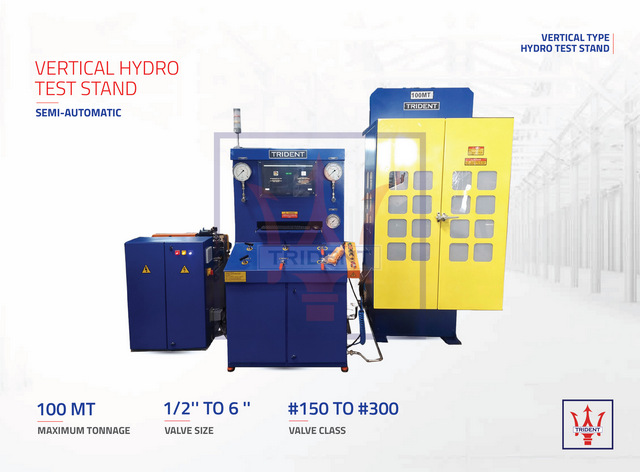

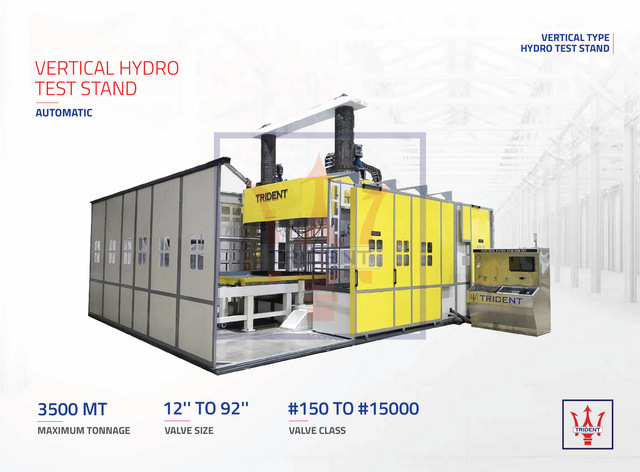

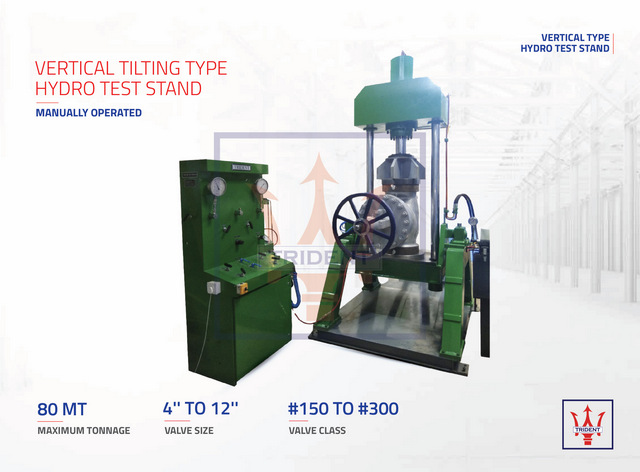

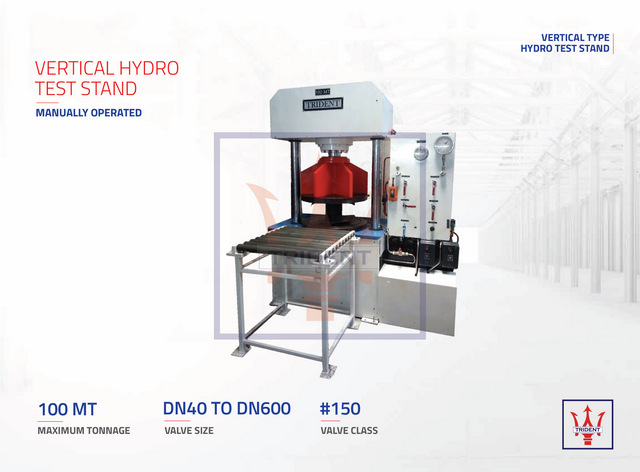

Vertical Valve Stand Key Features:

Vertical Orientation: Designed to hold components upright, which is ideal for items like cylinders, valves, and smaller tubular sections. The vertical positioning is beneficial for space-saving and ensures even pressure distribution.
Pressure System: Equipped with a high-pressure water pump to pressurize the item being tested. The water is pumped into the component, and pressure is increased to a specific level for the test.
Monitoring Equipment: Includes pressure gauges, digital displays, and sensors to monitor the internal pressure levels, allowing operators to observe test parameters in real time.
Leak Detection: The system is designed to detect and monitor any leaks or weaknesses in the tested component, ensuring that it meets safety and performance standards.
Safety Features: Integrated safety mechanisms, such as pressure relief valves and emergency shut-off switches, protect the operators and equipment from high-pressure failures.
Control Panel: Operators can manage the pressure levels, monitor the duration of the test, and ensure the testing process is compliant with the required standards using the control system.
Water Drainage System: After the test is complete, water is safely drained from the component using the built-in drainage system.

What is a vertical test stand, and what makes it an essential apparatus?

A vertical test stand is a type of hydro testing device designed to evaluate the strength, integrity and leak resistance, particularly cylindrical or tube-shaped components. Like any other hydro testing system, these systems simulate real-world operating conditions to test the components under controlled high pressure, but in a vertical setup.

The vertical test stands are an essential piece of equipment in testing parts such as, valves, valve body or components. For industries where the integrity of components directly impacts the safety and performance.

Key features of Vertical Valve Test Stands

As one of the leading Vertical valve stand manufacturers, we have understood what makes the testing stand advanced and enhances its performance accuracy. Here are some non-negotiable key features we highlight in the vertical testing stand.

1. Pressure system: The vertical test stand features a robust pressure system centred around a high-performance pump to pressurise water inside the test object. This is the backbone of the testing process as it simulates the real-world operating conditions in a controlled environment. This ability to generate and maintain a specific pressure level ensures accurate evaluation of the component’s strength and flaws detection.

1. Monitoring tools: the vertical test stands are equipped with advanced monitoring tools, including gauges and sensors. The smart testing module includes digital pressure gauges, sensors and user-friendly control panels, making it more efficient by increased command on test parameters such as pressure levels, cycle time, and fluid flow.

1. Safety mechanism: We build testing stands with redundant safety mechanisms with multi-level safety integrations. The testing units are incorporated with automatic pressure relief valves, emergency shut-off and protective enclosures to establish maximum operation safety during high-pressure testing.

1. Control panel: the vertical test stands are equipped with advanced digital instrumentation. The smart testing module features digital pressure gauges, sensors, and user-friendly control panels, making it more efficient by providing increased control over test parameters.

Drainage system: We design efficient systems while maintaining environmental responsibility. We ensure minimal water loss during the testing and also support safe, easy disposal and reuse of test fluid.

Safety Valve Vertical Test Bench Manufacturer in India

Trident Hydro Solutions is a leading safety valve test bench manufacturer in India, offering high-performance hydraulic test benches as per international standards which offer accurate and reliable valve test results. These machines are being used by leading manufacturers and are very satisfied with the performance of test bench. Our advanced test benches ensure precise testing of Valves, making them ideal for industrial applications.

Key Features of Our Safety Valve Test Bench

High-Pressure Testing - Capable of handling up to 690 BAR pressure.
Precise control of pressure and flow - ensuring accurate results.
Versatile Valve Testing - Supports multiple valve types and sizes.
Hydraulic Clamping System - Ensures firm and secure testing conditions.
Automated Test Control - Advanced software for real-time monitoring and data logging.
Leak Detection Technology - Enhances safety and accuracy.
Customizable Design - Tailored solutions to meet specific industrial needs.

Frequently Asked Questions (FAQs)

1. What is a safety valve test bench?

A Safety Relief Valve Test Bench is a specialized piece of equipment used to test, calibrate, and verify the performance of safety relief valves (SRVs) to ensure they function correctly and release pressure at the preset safety limits.

2. What types of valves can be tested on this machine?

Our vertical test bench is suitable for testing:

3. What is the maximum pressure capacity of the test bench?

Our safety valve test bench can test up to 690 BAR, making it suitable for high-pressure Hydro as well as Gas test applications.

4. What industries require safety valve testing?

Industries such as oil & gas, power plants, petrochemicals, manufacturing, and water treatment plants require safety valve testing.

5. How does the hydraulic system improve testing accuracy?

The hydraulic clamping and pressure control system ensures precise, repeatable, and automated test results with minimal human error.

6. Can the test bench be customized for specific valve sizes?

Yes, we provide customized safety valve test benches to accommodate specific valve sizes and industrial requirements.

7. Does the machine have data logging and reporting features?

Yes, our automated test system records and generates test reports for compliance and quality control.

8. What safety features are included in the test bench?

Leak detection sensors
Overpressure protection
Automated emergency shutdown
High-pressure safety mechanisms
Advanced hydraulic clamping systems
Safety Guards with pressure interlocking to ensure operator safety

9. Is the test bench suitable for large industrial valves?

Yes, the machine supports valves up to 16” to 20” in size, making it ideal for industrial use. These machines can be customized as per the customer requirement.

10. How can I purchase a safety valve test bench?

You can contact Trident Hydro Solutions to get a customized quote for your industry-specific requirements.

tridenthydrosolutions@gmail.com

Why Choose Trident Hydro Solutions?

Top Safety Valve Test Bench Manufacturer in India
Reliable & Customizable Testing Solutions
Industry-Leading Performance & Durability in valve test bench
Trusted by Leading Industries Worldwide
High-Precision Hydraulic Technology
Strong service teams
For more details or to request a quote, contact Trident Hydro Solutions today!

The vertical test stand is not just a machine, but a promising aperture in efficient critical testing operations. With the evolution of technology, these testing stands are only getting smarter and more advanced.

Technical Specifications – Vertical Test Bench

[wpdatatable id=1]

Our vertical hydraulic test benches are designed to handle a wide range of valve sizes and pressure capacities, making them ideal for oil & gas, power plants, petrochemicals, and manufacturing industries.
