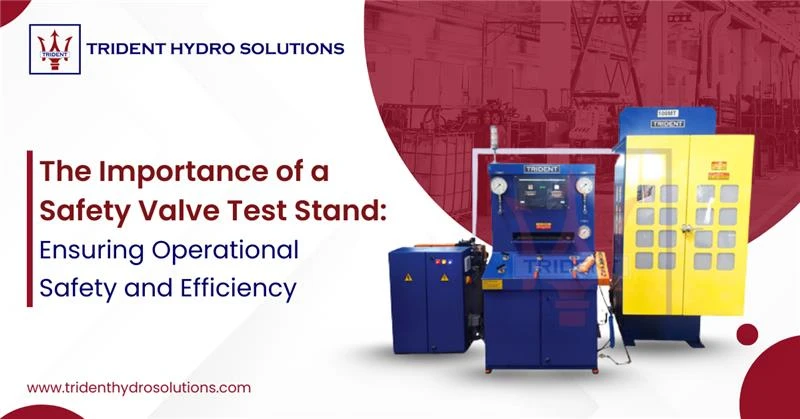

The Importance of a Safety Valve Test Bench: Ensuring Operational Safety and Efficiency
A safety valve is a critical component used across various industries, particularly in manufacturing, energy, chemical, and oil & gas sectors. It plays a vital role in protecting systems from overpressure conditions that could result in catastrophic failure, equipment damage, or even loss of life. To ensure that these valves work properly, regular testing is essential. This is where a safety valve test stand comes into play.
What is a Safety Valve Test bench?
A safety valve test stand is a specialized piece of equipment used to verify the functionality and performance of safety valves under controlled conditions. These test stands are designed to simulate the operational environment of the valve to ensure that it opens and closes at the correct pressure, maintains its integrity during operation, and functions as expected when needed.
The test stand is a comprehensive setup that allows engineers and technicians to perform various tests, including pressure testing, leak detection, and spring calibration. This ensures that the safety valve will perform its crucial function of relieving excess pressure in a system to avoid damage or catastrophic failure.
Key Components of a Safety Valve Test Stand
A typical safety valve test stand will include several key components to facilitate effective testing:
- Pressure Source: The stand must have a reliable pressure source (often compressed air or liquid) to simulate the pressure conditions the valve will face in its operating environment.
- Pressure Gauges: To measure the pressure at which the valve opens and ensures it functions at the proper settings.
- Flow Measurement Tools: To assess how much fluid or gas the valve can pass when open. This ensures the valve can handle the required flow without failure.
- Temperature Controls: Some tests may require specific temperature conditions to simulate real-world environments accurately. Temperature controls ensure that the test conditions are replicating actual operational scenarios.
- Test Chamber: A sealed area where the valve is installed for testing, ensuring that any fluid or gas released during testing is contained and monitored for safety.
- Calibration Equipment: For setting and checking the valve’s pressure settings and ensuring they match the manufacturer’s specifications and regulatory requirements.
The Testing Process
The testing process generally involves several key steps:
- Initial Inspection: Before testing, technicians perform a visual inspection of the valve to check for any signs of wear, corrosion, or other damage that may impact its performance.
- Pressure Setting Test: The valve is placed in the test stand, and pressure is gradually applied until the valve is required to open. The opening pressure is compared to the specifications provided by the manufacturer to ensure it functions at the correct pressure threshold.
- Leak Testing: Once the valve is open, the technician checks for any leaks around the valve seat, which could indicate a problem with the seal or the valve mechanism.
- Flow Testing: This test measures the flow rate of the fluid or gas passing through the valve to ensure it can handle the required volume during operation.
- Closing and Resetting Tests: After the valve opens, the pressure is released, and the valve must return to a fully closed position without any leakage or malfunction.
- Documentation and Certification: All test results are documented and, if the valve passes, it is certified for use. This documentation is often required for regulatory compliance.
Benefits of a Safety Valve Test Stand
- Reliability: Regular testing ensures that the safety valve will open and close properly when needed, preventing damage or catastrophic failures due to overpressure.
- Compliance: Many industries have strict regulations regarding safety and pressure relief devices. Using a test stand ensures that safety valves comply with national and international standards.
- Increased Safety: By ensuring safety valves are in optimal working condition, you significantly reduce the risk of accidents, injuries, and fatalities.
- Reduced Downtime: By detecting problems early through regular testing, it’s easier to perform preventative maintenance, which helps avoid unscheduled downtimes and costly repairs.
- Cost Savings: Preventing overpressure incidents through proper valve testing can save businesses significant costs in repair and replacement of equipment, not to mention avoiding the financial ramifications of a potential safety incident.
Types of Safety Valve Test Stands
There are several types of test stands, each suited to different kinds of valves and operational needs:
- Manual Test Stands: These are typically simpler, manual setups where the technician controls the test parameters by hand. These stands are usually less expensive but require more human intervention.
- Automated Test Stands: These are advanced systems that automatically adjust test parameters, monitor results, and even store data for later analysis. Automated test stands are more efficient, reduce human error, and are often used for high-volume testing.
- Portable Test Stands: These are mobile units that can be taken to various locations for onsite testing. Portable stands are ideal for testing valves in the field, especially when removing the valves for testing isn’t feasible.
- Stationary Test Stands: These are typically installed in a fixed location, such as a manufacturing or maintenance facility, and used for routine testing of safety valves before deployment.
Conclusion
A safety valve test stand is a crucial piece of equipment for industries that rely on safety valves to protect against overpressure incidents. Regular testing ensures that these valves will operate correctly, providing reliable protection for both equipment and personnel. Whether used in a manufacturing plant, a chemical refinery, or an oil and gas facility, the test stand plays an essential role in maintaining safety, compliance, and operational efficiency. Regular testing, whether manual or automated, allows companies to ensure that their safety systems are always ready to perform in an emergency.
